Initial connection to the TASMOTA WIFI A1T NOUS socket

Created on May 03, 2024 | Updated on April 30, 2025

First connection

Before You Begin:a. This socket can only work on a 2.4 GHz WIFI network. Check your networkb. You will need a computer with a wifi connection to configure the socket.vs. Write down the password (security key) of your wifi.d. Be prepared to write down the IP address that will be provided to you during installation.

1. Plug the smart plug into the mains.

2. Access the available WIFI networks on your PC. You should see the access point “tasmota-xxxxxxxx” appear, if the access point is not detected, you must reset your socket, see Reset section at the bottom of the page.

3. Connect to the “tasmota-xxxxxxx” hotspot

Connecting to Tasmota WIFI A1T NOUS socket via tasmota-xxxxxxxx access point
Setting up your Tasmota WIFI A1T NOUS socket connection

4. After connecting to the access point, go to your internet browser and enter the IP address: 192.168.4.1 in the top search bar. You should see the page appear:

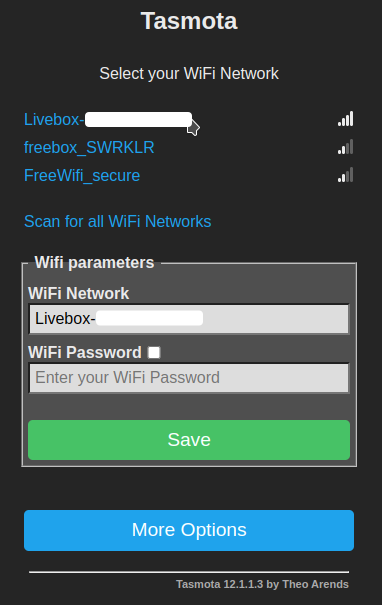

Tasmota 12.1.3 configuration interface accessed via 192.168.4.1 for A1T NOUS socket
Accessing Tasmota A1T NOUS socket configuration at 192.168.4.1

5. In this page:

  • a/ Select your personal network by clicking on it. Your network should appear in “WIFI Network”.
  • b/ Enter the Security Key of your network in the “WiFi Password” field.
  • c/ PREPARE SOMETHING TO NOTE then click on “Save”
  • d/ ATTENTION: Immediately note the IP address that appears on the following page:

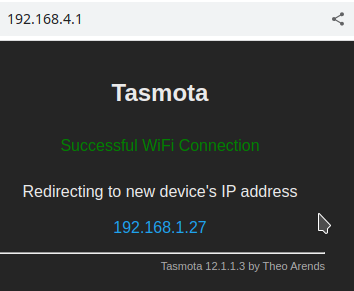

Tasmota 12.1.3 WIFI setup instructions for A1T NOUS socket with network selection and password entry
Configuring WIFI for Tasmota A1T NOUS socket with step-by-step instructions

6. On your PC, reconnect to your personal WiFi network.

7. On your browser enter the IP address of the socket you noted. You should see the page appear:

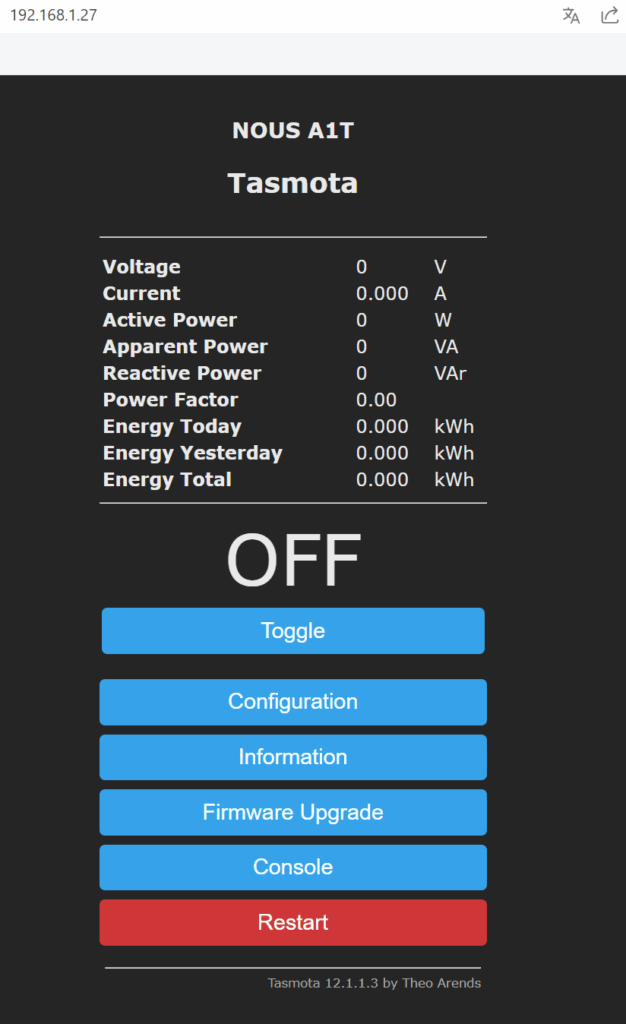

Tasmota 12.1.3 control page for A1T NOUS socket showing OFF status and consumption data
Monitoring and controlling Tasmota A1T NOUS socket via web interface

8. Immediately test your outlet by clicking the “Toggle” button, it should turn on or off.

9. The smart plug is ready to use. The template and rules are already enabled, but if you need them later, you can find them below.

In the official documentation you are invited to calibrate the device for the power source. You can find how to do this here: https://tasmota.github.io/docs/Power-Monitoring-Calibration/ . I didn't need it.

Resetting an outlet

Ideally plug the Tasmota socket into a power strip fitted with a switch to switch between on and off 6 times and leave it on for the 7th time, the LED should start to flash, this means that the socket is ready to be initialized .
